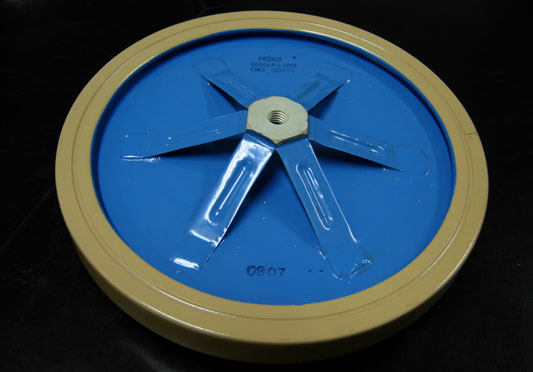

Plate Power RF-Capacitors with Finger Terminals (PE, PEF, PD, PDF)

Type
Capacitance(PF)
Temperature
quotiety (ppm/℃)
DC Voltage (KV)
Rating Power (KVA)
Dissipation
factor
Insulation
resistance

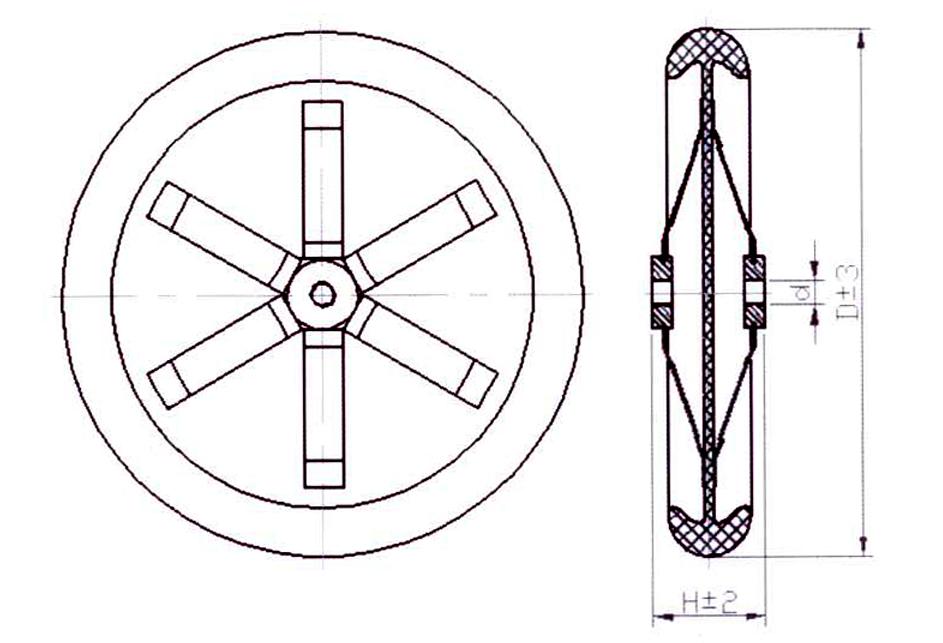

Dimensions(mm)
Value
Tolerance
D
H
d
PE100
PD100
400
M
(±20%)
-750(U)
14
40
tgδ
≤6*10-4
R1
≥1*1010Ω
100
40
M8
500
600
800
1000
13
1200
1600
11
PE140
PD140
1000
14
90
140
40
1200
1600
2000
13
2500
3000
12
PE200
PD200
2000
14
150
200
45
M10
2500
3000
4000
13
5000
6000
12
PEF220
PDF220
2000
20
140
225
45
2500
3000
17
4000
13
5000
6000
12

Remarks: 1. PD-Capacitor is three finger terminals Capacitor

                   2. PE-Capacitor is six or eight finger terminals Capacitor
