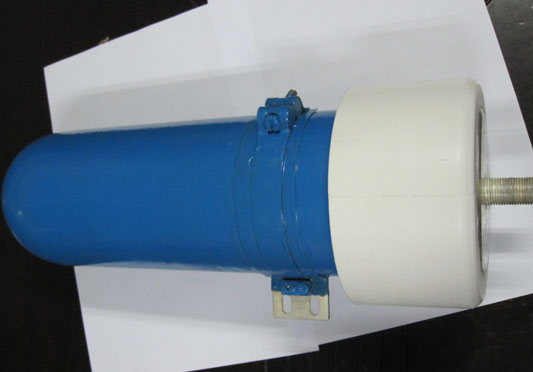

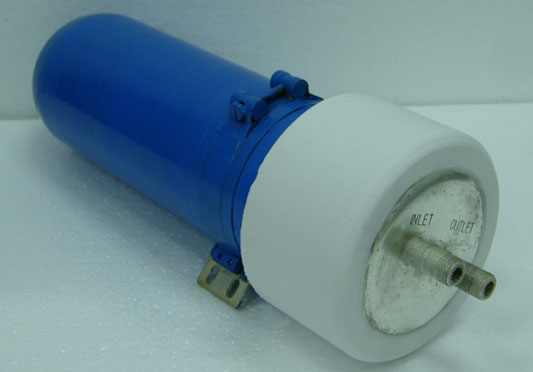

Water-cooled Power RF-Capacitors (Internal Cooling)
Contoured Rim Protected with Silicone Rubber

Type
Capacitance(PF)
DC Voltage (KV)
Rating Power (KVA)
Dissipation
factor
Insulation
resistance

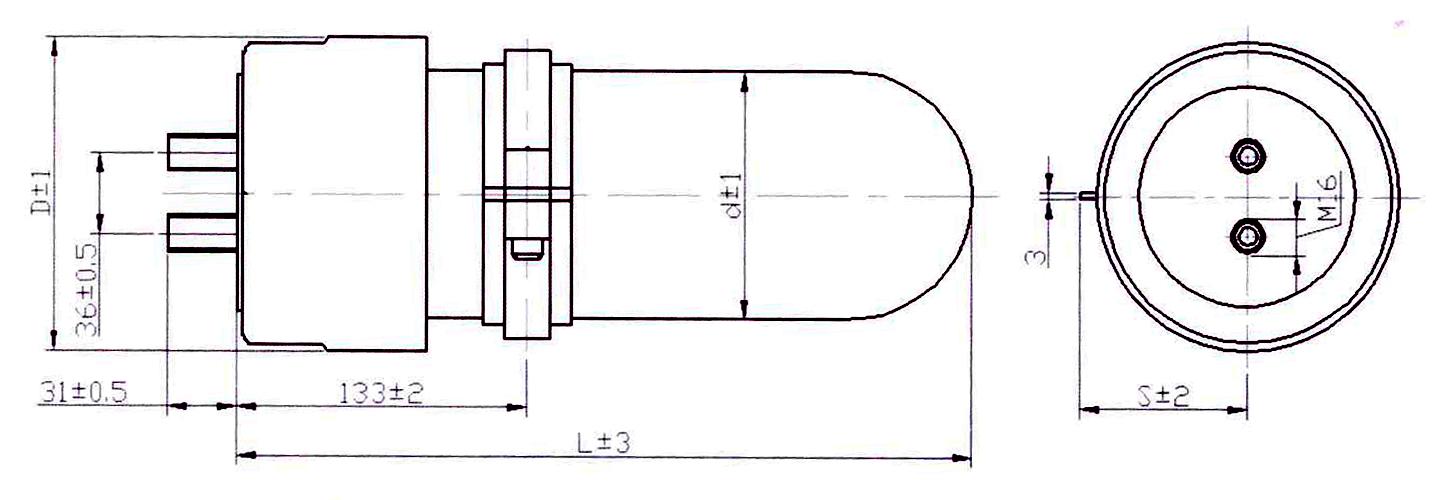

Dimensions(mm)
Value
Tolerance
D
d
L
S
FZ140316
7500
K
(±10%)
22.5
4000
tgδ
≤8*10-4
R1
≥1*1010Ω
139
110
316
85
FZ140266
10000
14
3000
139
110
266
85
FZ140376
10000
20
4000
139
110
376
85

Remark: Specifications with prefix "F"are silica gel insulation capacitance.
